Physics simulation

This tutorial explains how to use Blender tools to easily set up physics simulations using rigid bodies. It is assumed that the reader knows how to import models from resource packs and export and manage animations. These actions are explained in different parts of the documentation.

The default Minecraft resource pack can be downloaded from Mojang’s Bedrock Samples: https://github.com/Mojang/bedrock-samples/releases/latest.

  1. Import minecraft:ravager model. We pick ravager because it has a simple geometry and unlike some othe mobs it doesn’t use animations to move it to a default pose which means that our animation doesn’t have to recreate that.

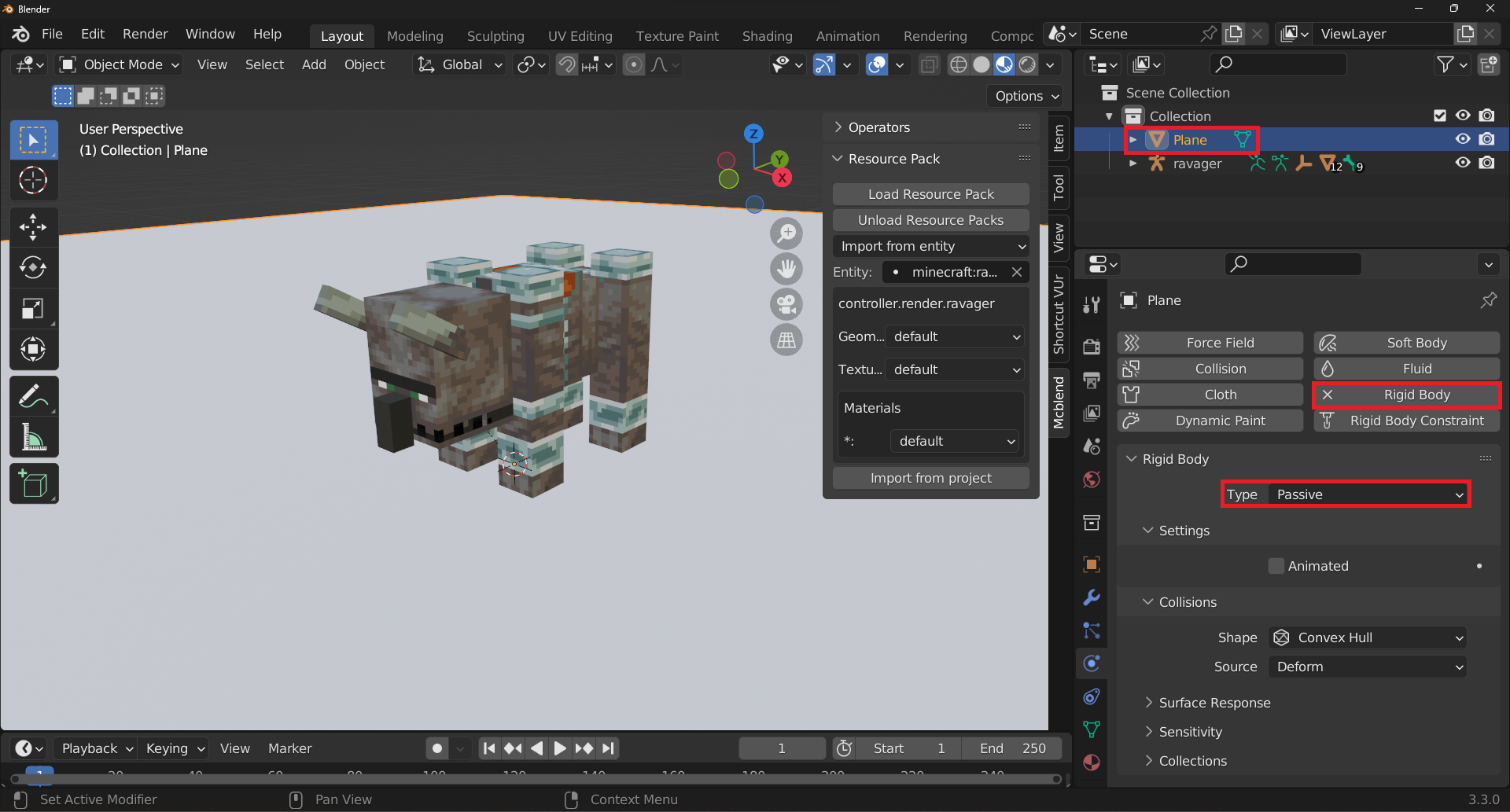

  2. Add a plane, scale it up 30 times, select it and open Physics Simulation and press the Rigid Body button, change the Type to Passive. This plane will act as a floor for the model parts to interact with.

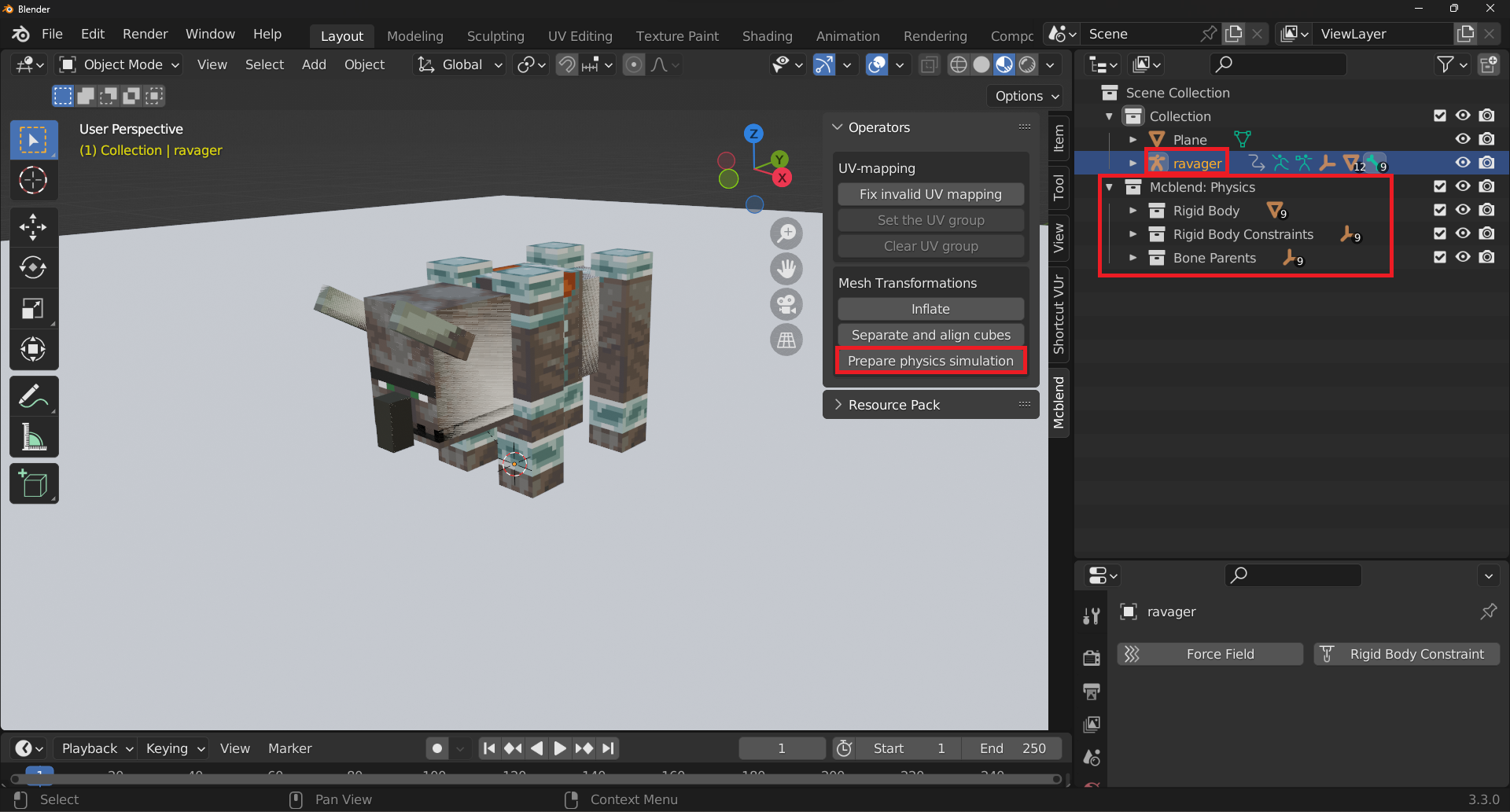

  1. To prepare a model for physics simulation, select the armature of the model and in the Mcblend sidebar, press the Prepare physics simulation button.

This operation adds three new collections to the outliner: Rigid Body, Rigid Body Constraints, and Bone Parents. It also configures the model to be ready for physics simulation. Any frames after the one selected when the Prepare physics simulation button is pressed are simulated, while the frames before that point can be animated manually. The simulation button also adds keyframes to the animation that enable the simulation one frame after the frame active at the moment of pressing the button.

Note

The explanation of the collections created by the Prepare physics simulation button:

  • The Rigid Body collection contains meshes with the same shapes and sizes as the parts of the model. These objects are simulated and during the simulation their movement is copied to the corresponding bones of the model.

  • The Rigid Body Constraints collection contains empties that define the connection points between the bones. They’re used to define the bone structure of the model. The constraints are set to Fixed by default which means that the bones can’t move in relation to each other.

  • The Bone Parents are empties that correspond to the bones of the model. The bones of the model use the Copy Transforms constraint to copy their transformations during the simulation. The Bone Parents empties copy the transformations of the rigid bodies during the simulation.

  1. The properties of the rigid bodies and rigid body constraints usually need to be adjusted for a good simulation.

The objects from the Rigid Body Constraints group are only useful when your model has more complex bone structure. In the ravager model everything except mouth is a root bone so most of the constraints don’t do anything. In some cases you would change the default Fixed type of the connection to something different to allow the movmement of the bone but we won’t do that because the animation looks better without it.

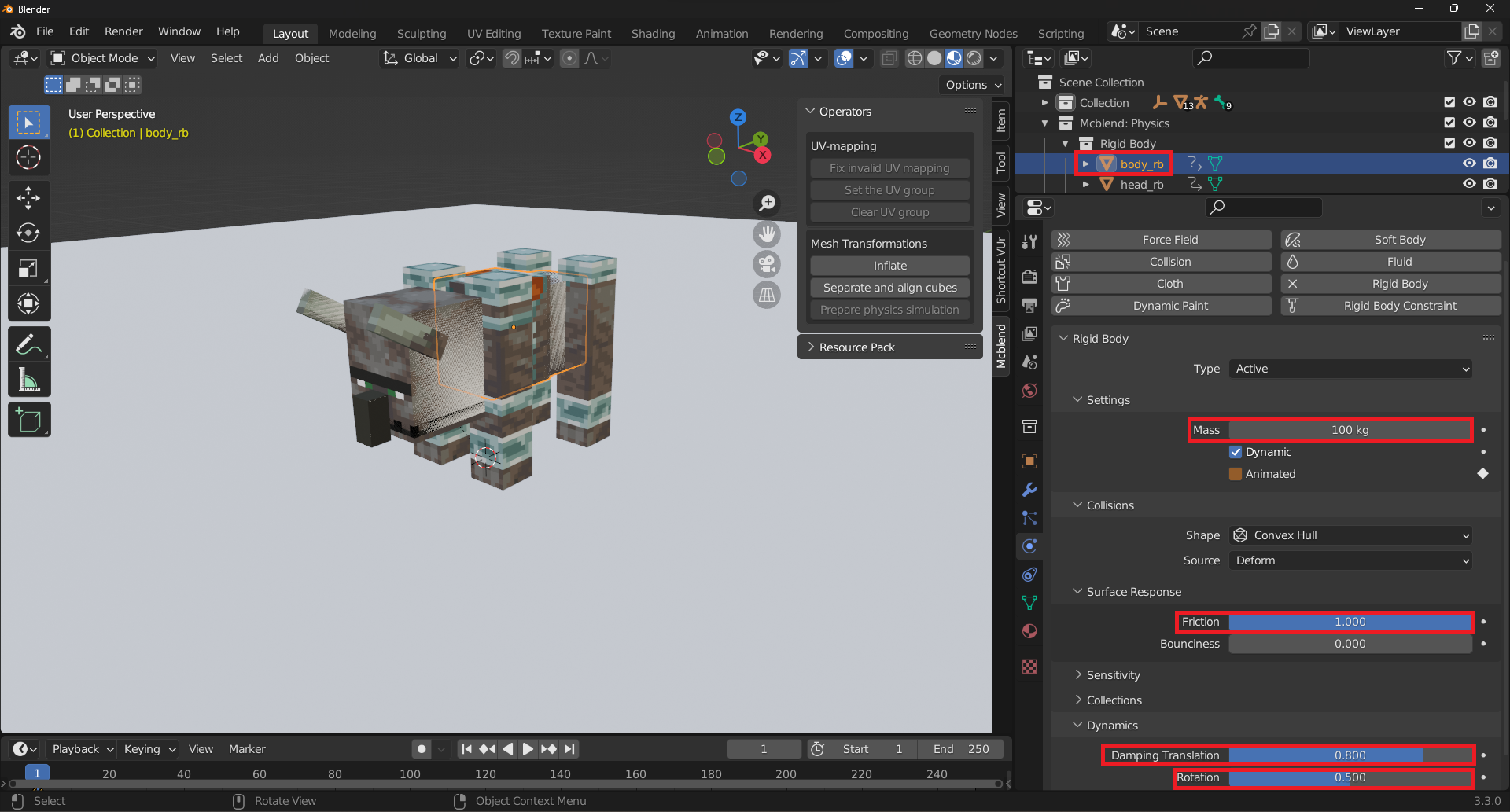

We need to adjust the objects from the Rigid Body group. They should be heavier and have more friction. Set their:

  • Friction to 1

  • Weight to 100kg

  • Dumping Translation to 0.8

  • Rotation to 0.5

Warning

Blender sometimes changes the names of the properties of the rigid bodies with updates. It appears that the names are changed more often than other parts of the UI, so if you’re using a different version of Blender than the one used to write this tutorial (3.3), the names of the properties may be different.

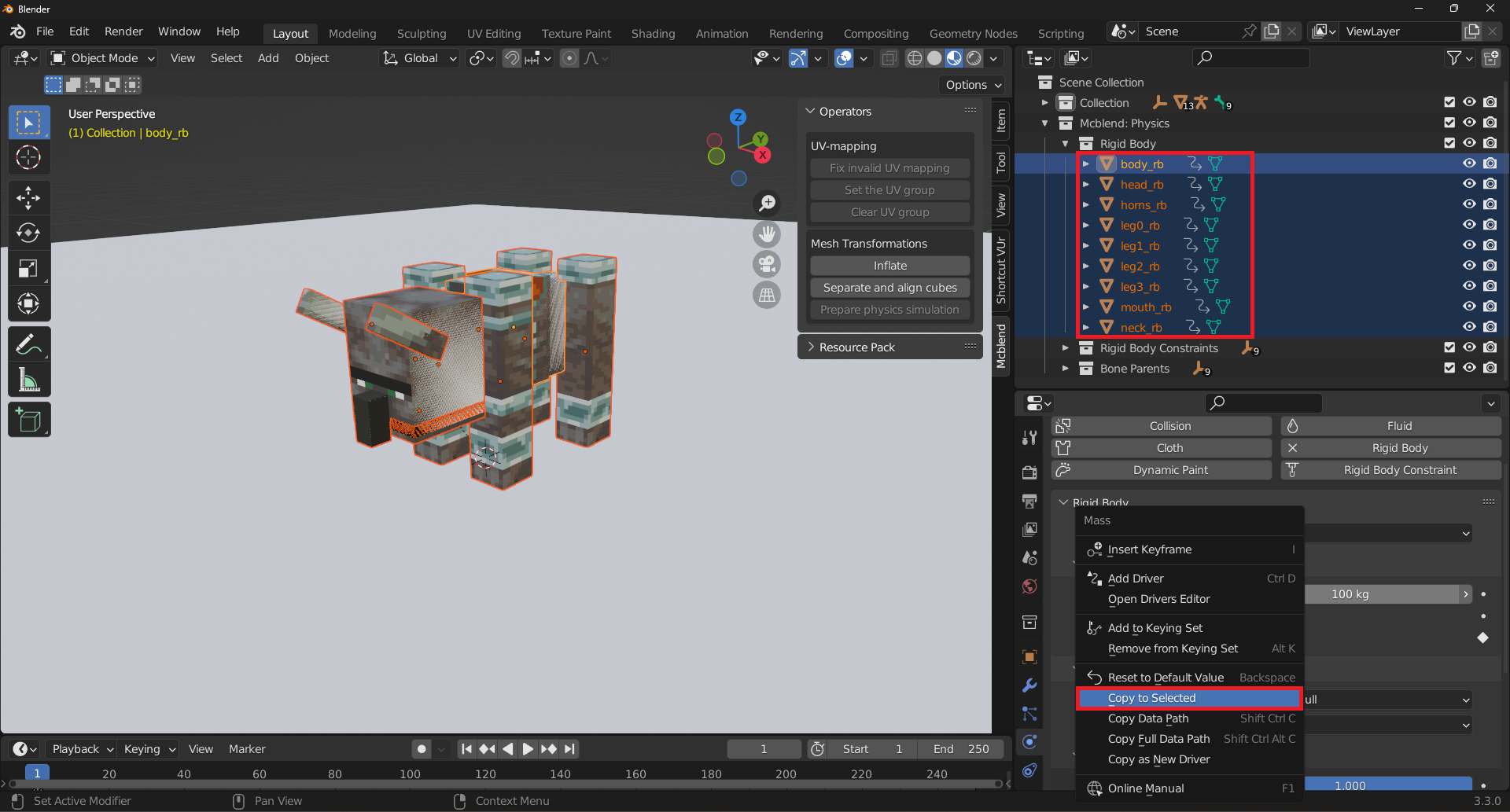

Use Copy to selected to copy all of these properties to every object from the Rigid Body group.

The Bone Parents group never needs to be adjusted.

  1. Starting the simulation by pressing space will cause the model to fall apart and explode, due to the overlapping parts. The limbs and head bones are not parented to the body bone, allowing them to fly away. The previously configured settings of increased friction and weight prevent the parts of the model from sliding too much on the ground.

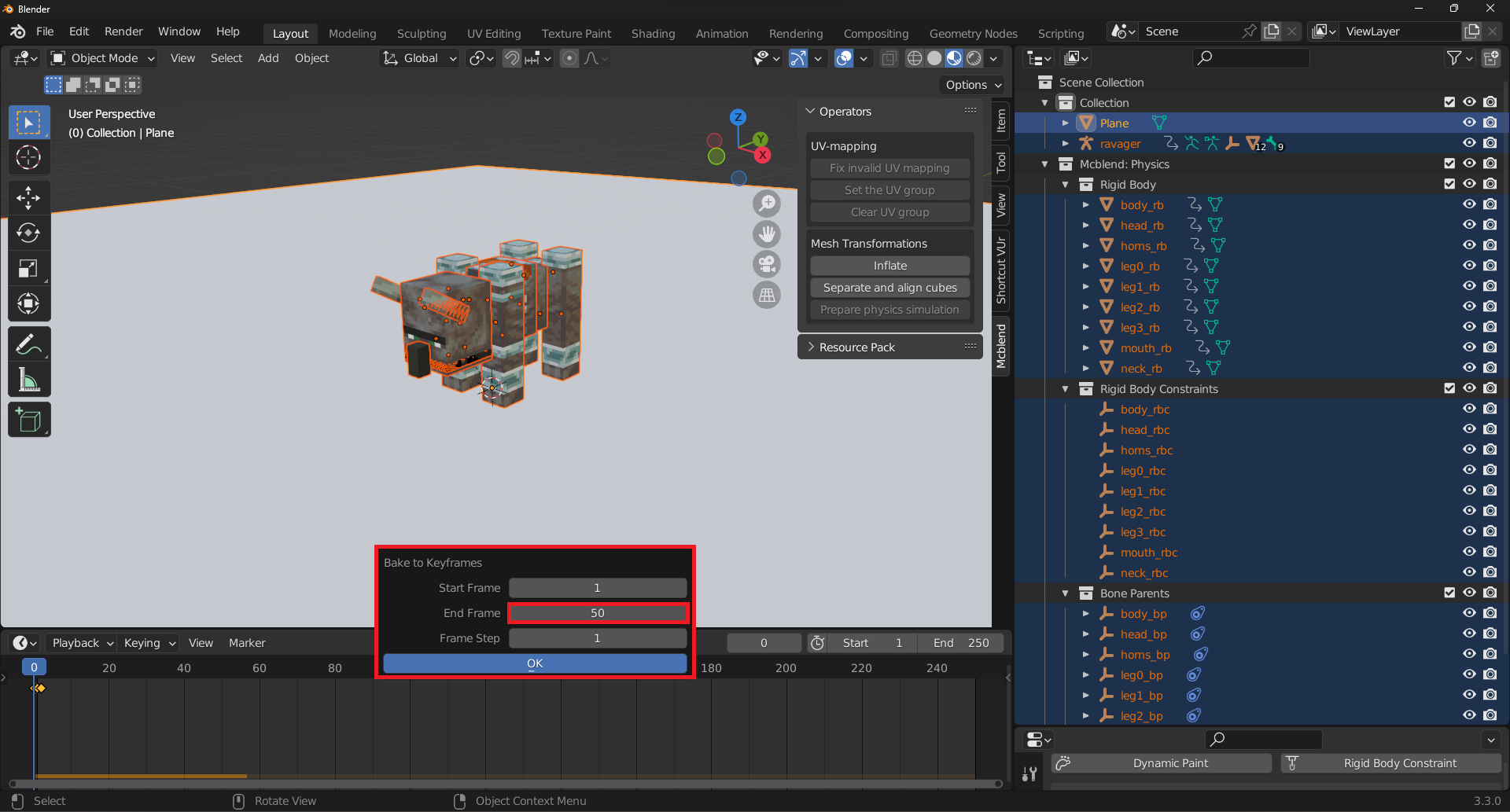

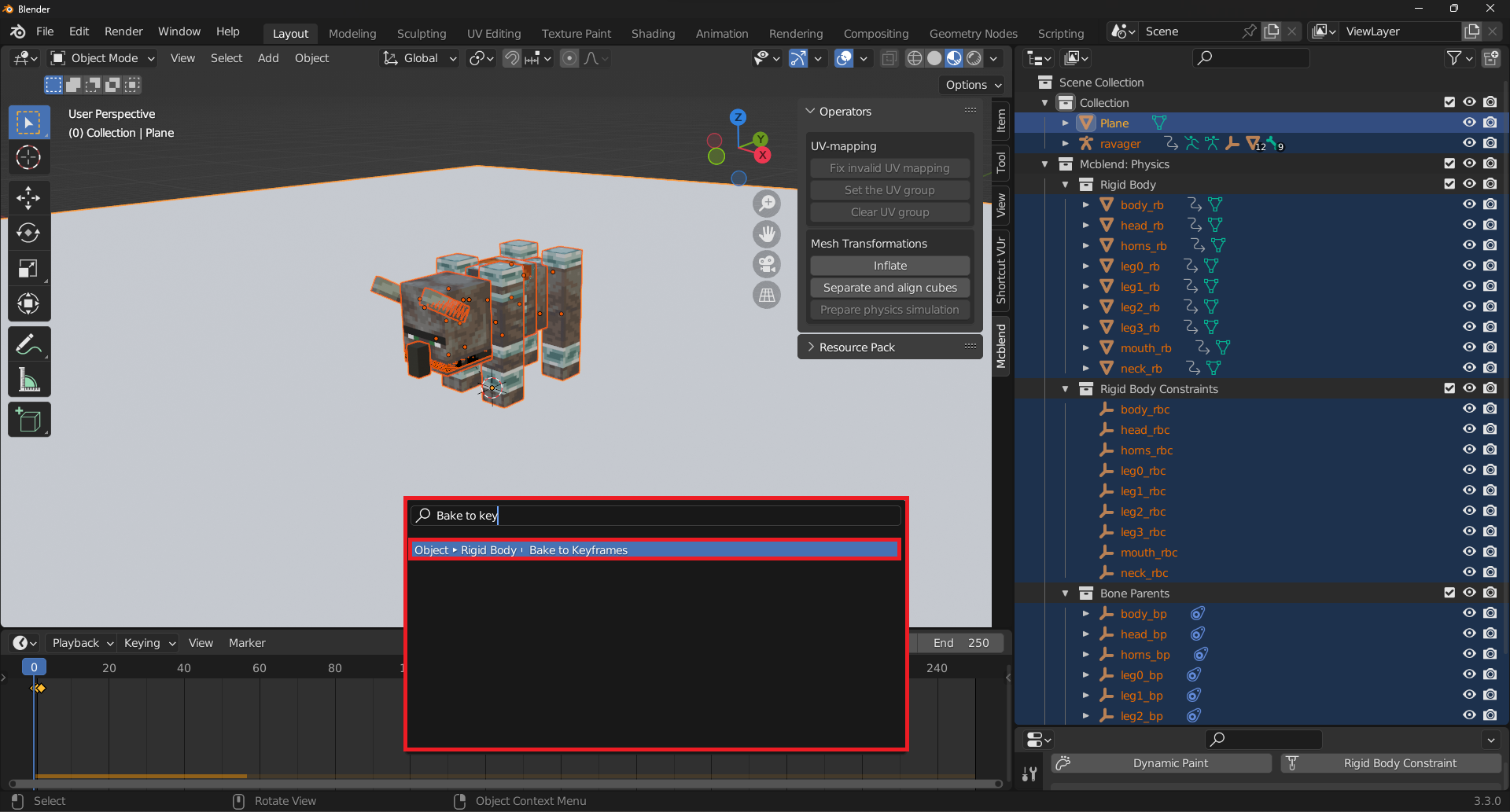

  2. To bake the animation, first select everything in the scene (by presing A), then press F3. In the search field, type Object > Rigid Body > Bake to Keyframes. The full simulation will take around 50 frames, so set the range to 50 frames.

  1. The keyframes generated by the Bake to Keyframes operation are insufficient for proper animation export. Mcblend requires keyframes to be applied to the model’s armature, whereas the simulation applies them to rigid bodies.

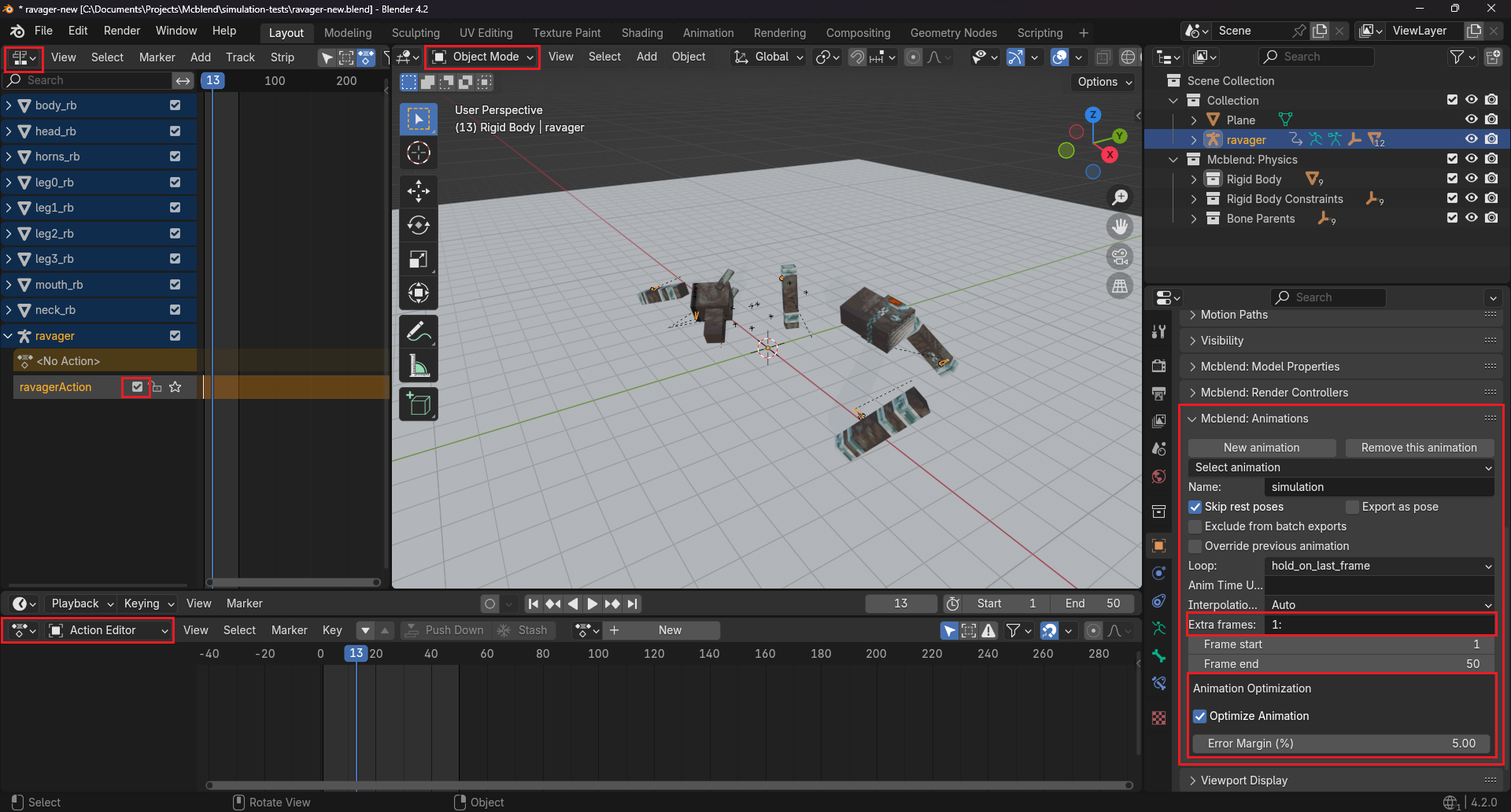

Fortunately, you do not need to manually add all 50 keyframes. Mcblend can automate this process during animation export. Simply create a new empty Mcblend animation and utilize the Extra Keyframes feature to add keyframes starting from frame 1 (define the range as 1:).

Warning

If a warning prompts you to “Stash or push down” before adding a new animation when pressing the New Animation button, select Push down in the Action Editor tab. This action moves the current animation to the Nonlinear Animation editor while keeping it active.

Before exporting, make sure that frame 0 is a rest pose and that all bone transformations at that frame are keyframed.

To reduce animation size with a minimal impact on quality, consider using the {ref}Animation Optimization<optimizing-animations> feature.

  1. Export the animation using the knowledge from previous tutorials.

Result:
